2. EV Battery real-time monitoring and Diagnosis

- 인공지능 기반 사용 후 배터리 상태 진단 솔루션

- 클라우드 서비스 기반 재사용 배터리 상태 감시 및 수명 예측 솔루션

3. 사용후 배터리 전 주기 신속진단 예측 솔루션

- Processing of transmitted raw data

- AI-based battery status diagnosis

- Communicate battery status to user

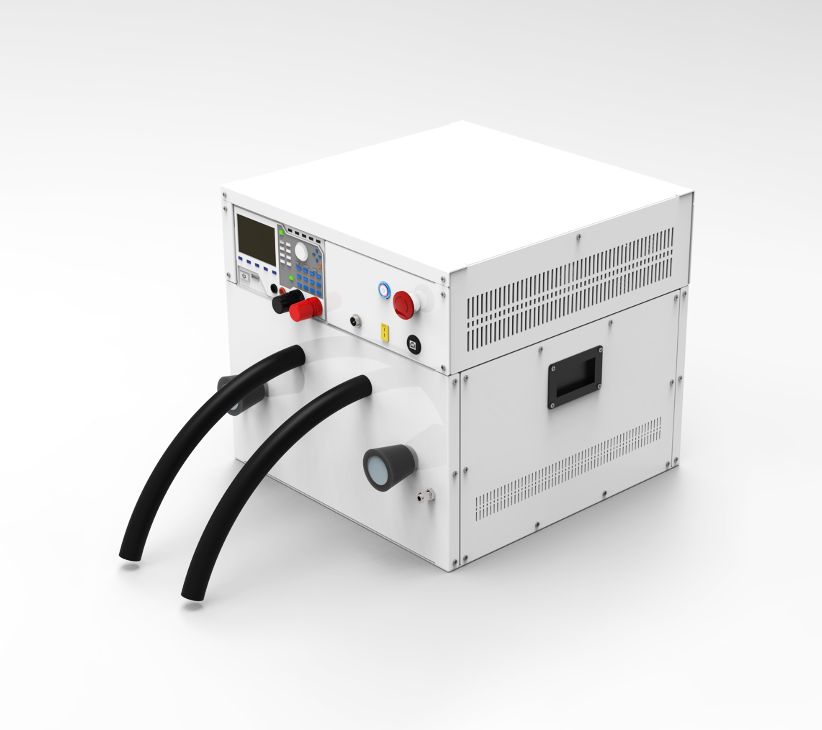

4. Battery Tester (Charging/Discharging)

FEATURE

- Battery Charging Test

- Battery Discharging Test

- Battery Cell Temperature Measurements ( 2 TC per CH )

- CYCLE TEST UI Program

- Remote setup and Monitoring

- 4CH / UNIT and max 20CH

SPECIFICATION

- AC Power input : 220V 16A 1 Phase

- Maximum Power consumption : 2KW

- Charging Voltage : 0 ~ 5V / CH

- Charging Current : 50A / CH

- Operation Mode : CC, CV, CP

- Communication : Ethernet 10/100BT

- Equipment Size : 426 x 550 x 267mm (Length x Width x Height)

5. EIS

FEATURE

- BATTERY Cell / Module Test Station

- Impedance & Voltage Measurement

- Impedance Measurement

- Automation experiments

- Temperature Measurement

SPECIFICATION

- Frequency Range : 1KHz ~ 0.1Hz

- Impedance Range : 3mΩ, 10mΩ, 100mΩ

- Measurement Current : 1.5A, 500mA, 50mA

- Measurement Voltage (Cell) : 5V

- Measurement Voltage (Module) : ~ 100V

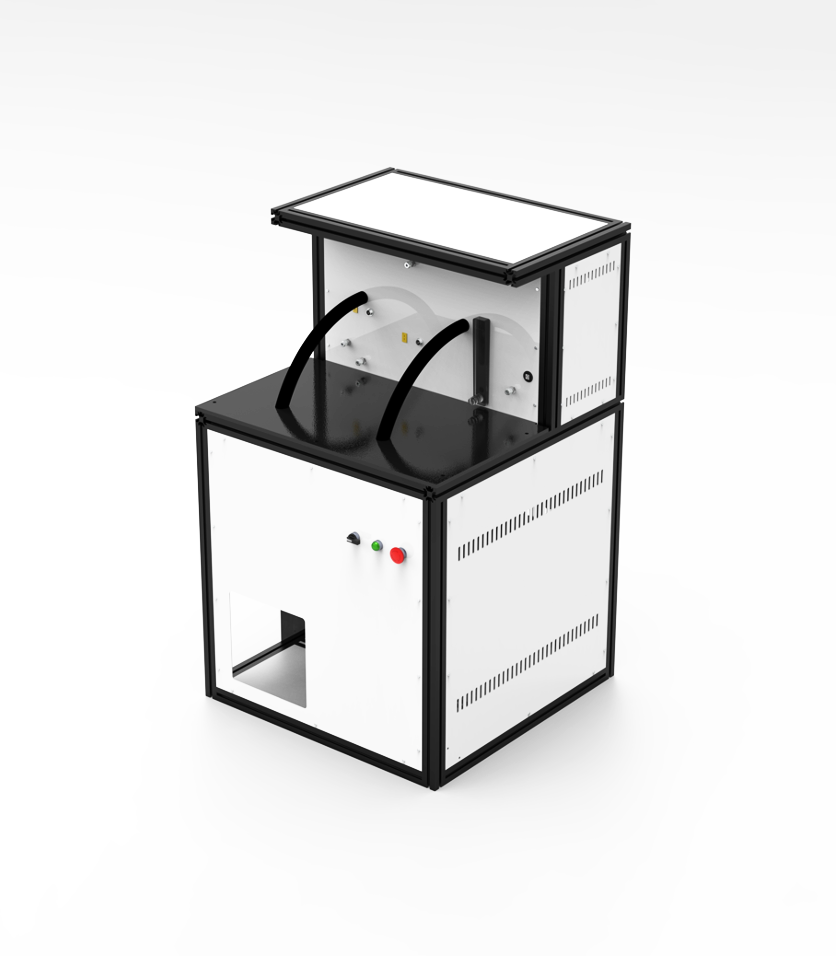

6. PEMFC Station

FEATURE

- Customizable Fuel Cell Test Station

- Various H2, AIR or O2 Supply Modes Variable

- Wet / Dry Operating Modes

- Automation experiments

- Flow range : 0.5 ~ 5 SLPM

SPECIFICATION

- Mass Flow rates (Anode(H2))  : 0.5 ~ 5 SLPM

- Mass Flow rates (Cathode(AIR)) : 1 ~ 5 SLPM

- Mass Flow rates (Purging(N2)) : 1 ~ 5 SLPM

- Humidifier : Bubbler Type

- Temperature Control : Software Control / K-Type TC

- Electronic Loader : Customized Model depending on Peak Power

- Water Supply System : Check Valve and Solenoid Valve

- Back Pressure Regulator : Manual 2Ch / Range 0~5bar / Auto Available

- Data Gathering : Customized Model

- Equipment Size : 600 x 500 x 455mm (Length x Width x Height)
